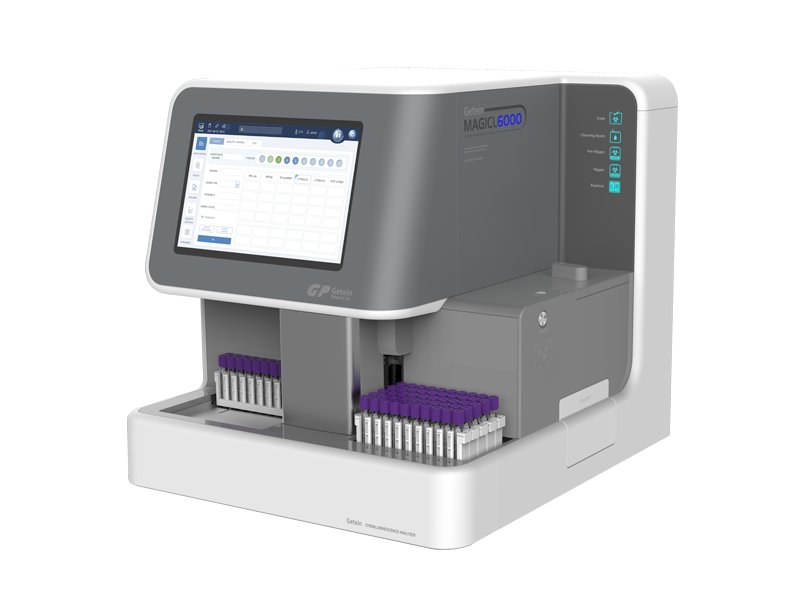

MAGICL 6000 Chemiluminescence Immunoassay Analyzer

MAGICL 6000, a compact and innovative chemiluminescence immunoassay analyzer, with optimal choice for mid to high-workflow laboratories which need a one-step chemiluminescence solution. Highly productive and compact, this instrument enables fully automated operation and provides the fastest testing speed of any device of its size.

• Sample Type:

Whole Blood/Serum/Plasma/Urine/Fingertip Blood

• Test Time:

150 T/H , First result 12 min.

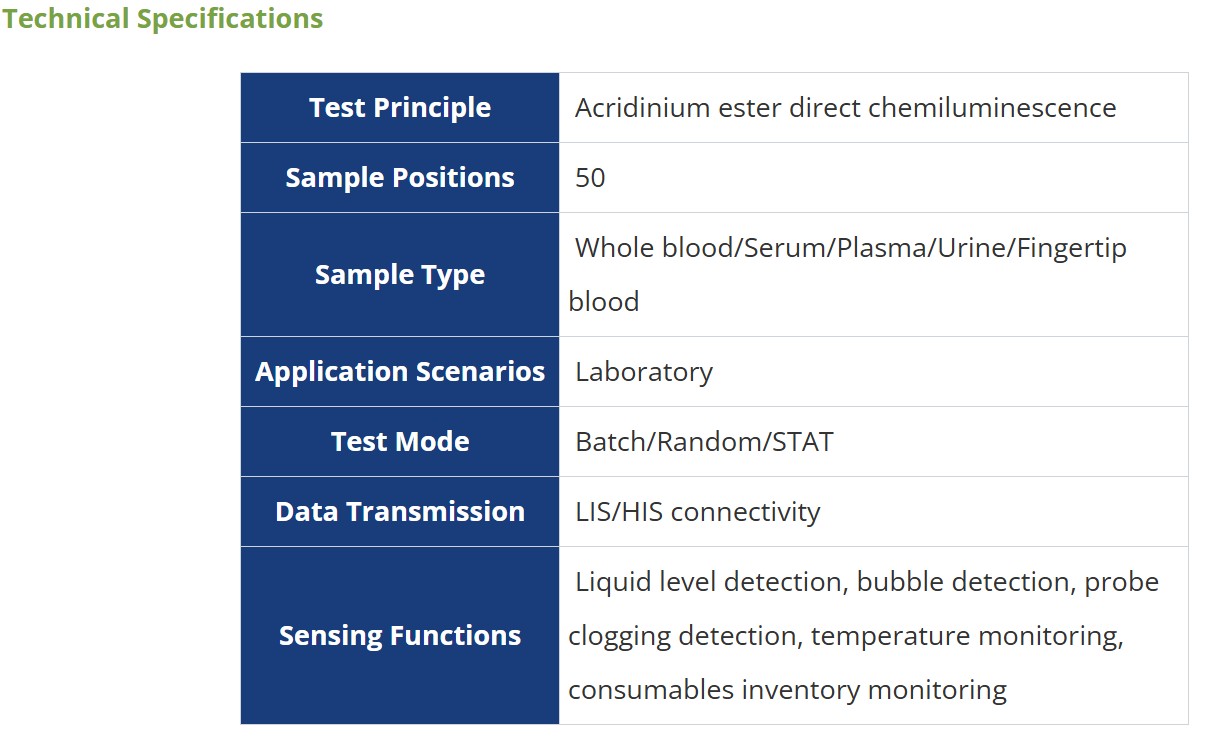

• Methodology:

Acridinium Ester, Direct CLIA

• Sample Position:

50 samples per run

• Dimensions:

625 mm× 690 mm×660 mm (D×W×H)

• Weight:

75 kg

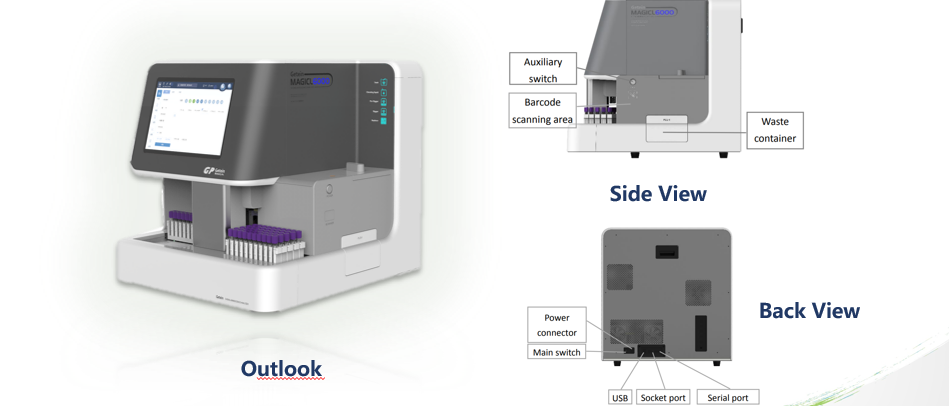

MAGICL 6000

Chemiluminescence Immunoassay Analyzer

Intended Use

MAGICL 6000 Chemiluminescence Immunoassay Analyzer (hereinafter called MAGICL 6000) automates the detection and quantification of biomarkers for thyroid disease, tumor, fertility, infectious disease, bone metabolism, cardiac disease, diabetes mellitus, inflammation, anemia, and immune globulin by analyzing human serum, plasma, whole blood and urine samples.

Features

 Reagent Unit

14 reagent positions, supporting on-board loading

Automatic recognition of reagents by QR code scanning

2-8 °C refrigeration system, with one-month shelf life of regents on board

PE-film puncture technique, preventing reagents evaporation

Sampling Unit

Auto mixing and uncapping of sample tubes

Adding sample with disposable tips to avoid cross contamination

Liquid level detection function, adding sample more accurately

Sample Unit

10 sample racks；50 positions

Video recognition system, acquiring real status of sample liquid level and avoiding inaccurate sampling caused by bubbles

Emergency sample test in priority

 HCT Unit

HCT testing calculates the serum volume, ensuring the accuracy of whole blood sample test.

 Test Unit

Combining washing station, test station and incubation station in one unit

Small size with high throughput

Unique design of washing station, excluding whole blood factors influence

 Consumable Unit

Integrated dual consumable module

Continuous consumable change without test pauses for easy operation
