Sample Preparation Transportation Sorting

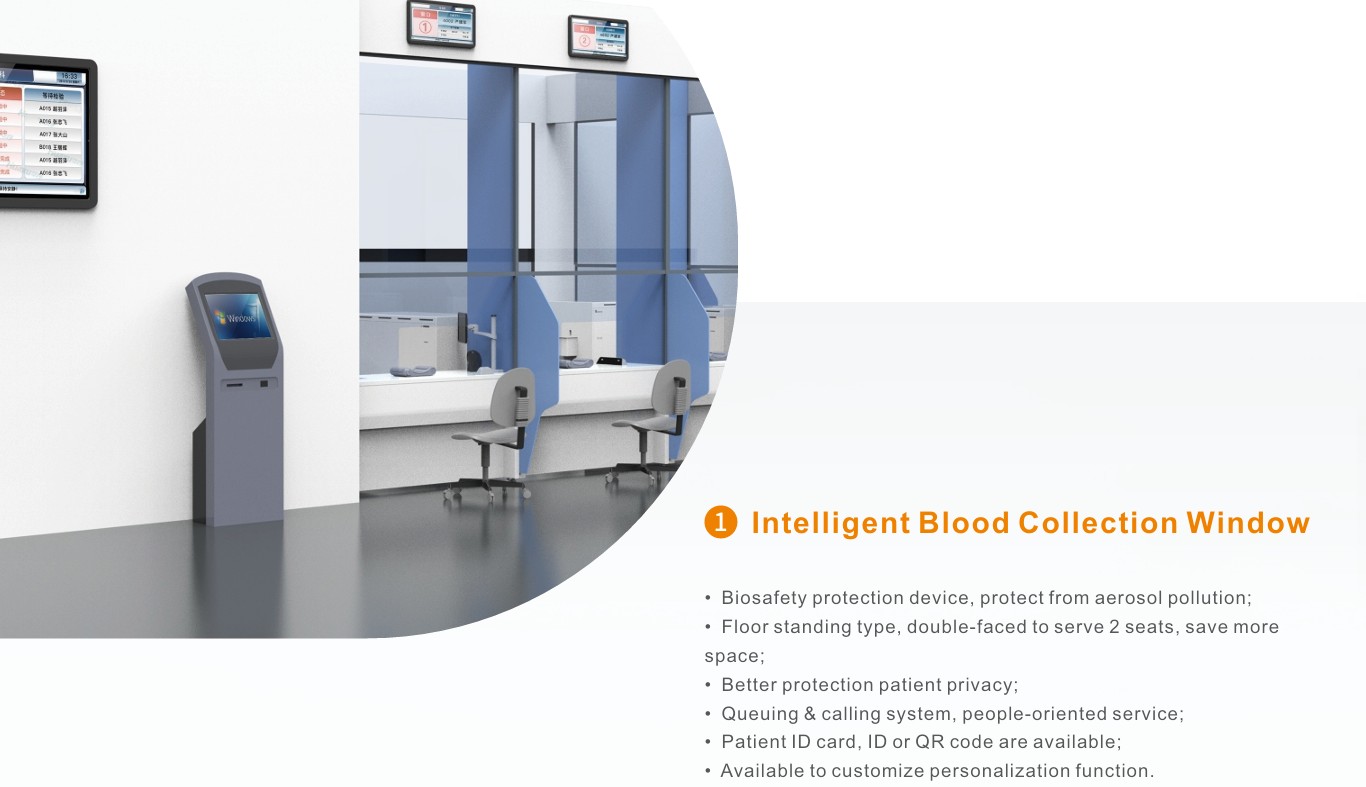

1. Intelligent Blood Collection Window

• Biosafety protection device, protect from aerosol pollution;

• Floor standing type, double-faced to serve 2 seats, save more space;

• Better protection patient privacy;

• Queuing & calling system, people-oriented service;

• Patient ID card, ID or QR code are available;

• Available to customize personalization function

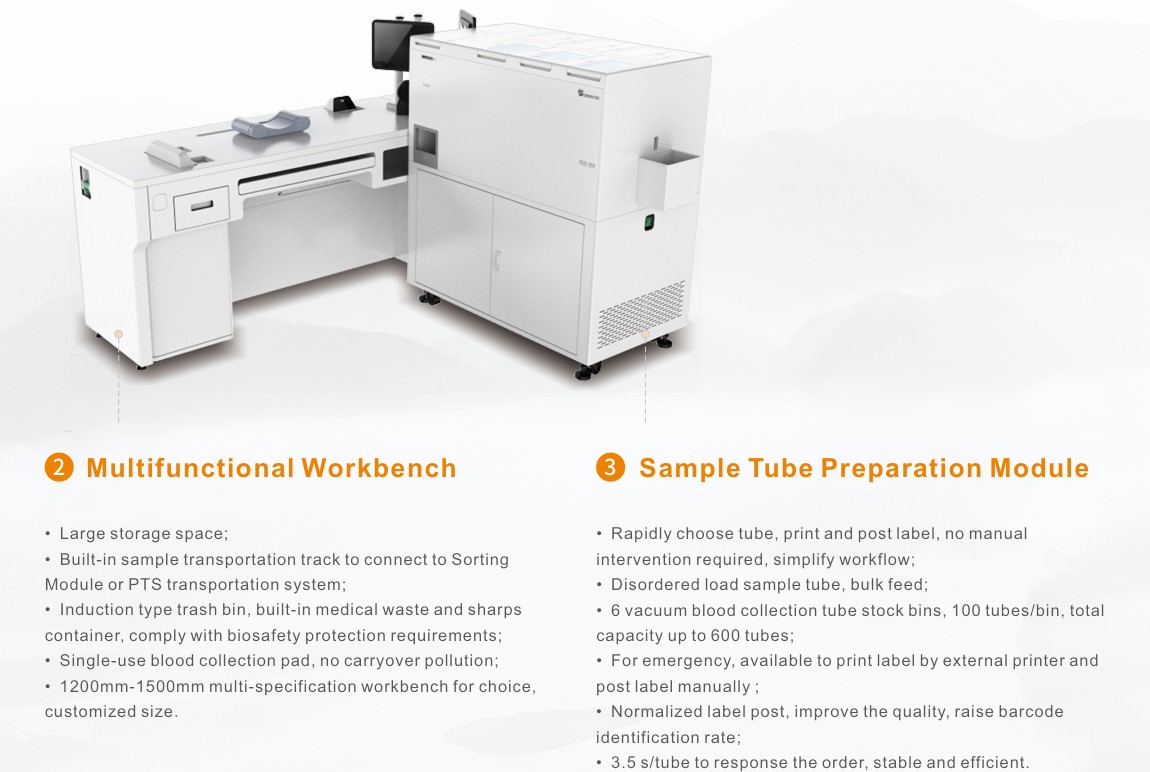

2.Multifunctional Workbench

• Large storage space;

• Built-in sample transportation track to connect to Sorting Module or PTS transportation system;

• Induction type trash bin, built-in medical waste and sharps container, comply with biosafety protection requirements;

• Single-use blood collection pad, no carryover pollution;

• 1200mm-1500mm multi-specification workbench for choice, customized size

3.Sample Tube Preparation Module

• Rapidly choose tube, print and post label, no manual intervention required, simplify workflow;

• Disordered load sample tube, bulk feed;

• 6 vacuum blood collection tube stock bins, 100 tubes/bin, total capacity up to 600 tubes;

• For emergency, available to print label by external printer and post label manually ;

• Normalized label post, improve the quality, raise barcode identification rate;

• 3.5 s/tube to response the order, stable and efficient

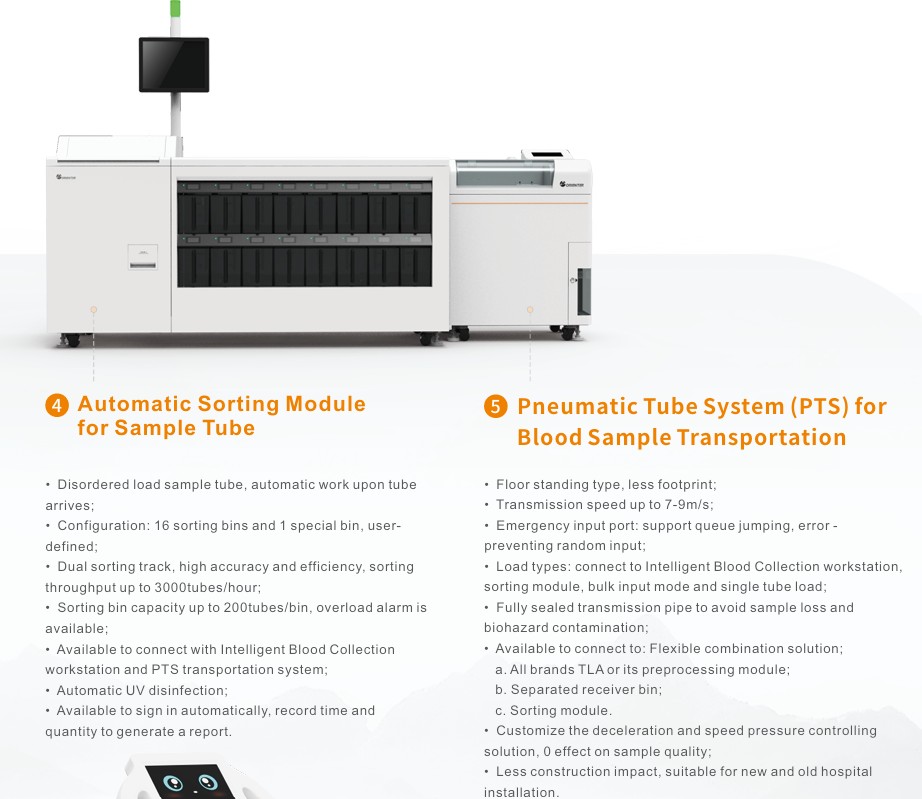

4.Automatic Sorting Module for Sample Tube

• Disordered load sample tube, automatic work upon tube arrives;

• Configuration: 16 sorting bins and 1 special bin, user defined;

• Dual sorting track, high accuracy and efficiency, sorting throughput up to 3000tubes/hour;

• Sorting bin capacity up to 200tubes/bin, overload alarm is available;

• Available to connect with Intelligent Blood Collection workstation and PTS transportation system;

• Automatic UV disinfection; • Available to sign in automatically, record time and quantity to generate a report.

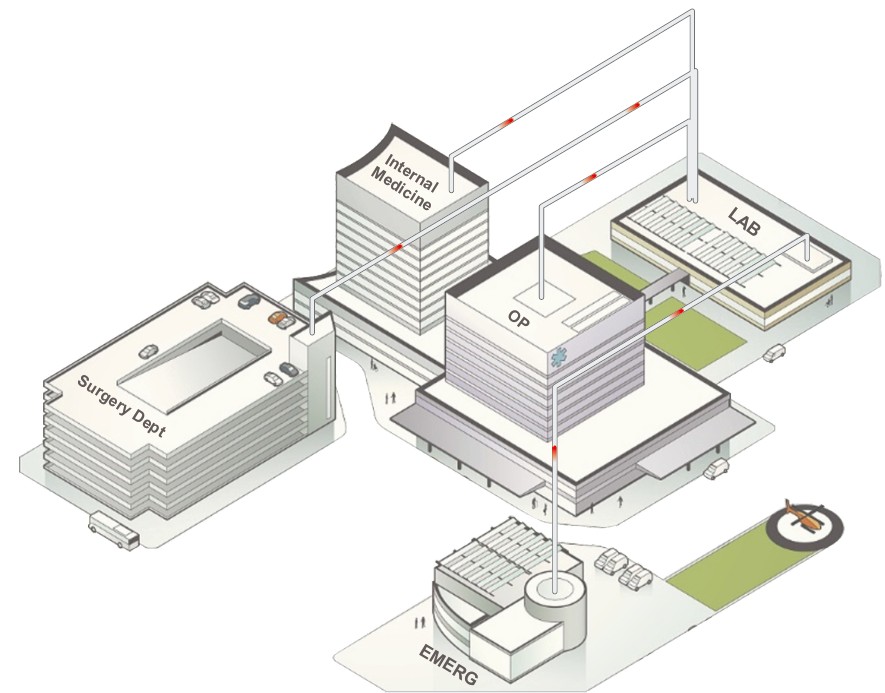

5.PneumaticTubeSystem(PTS)for BloodSampleTransportation

• Floor standing type, less footprint;

• Transmission speed up to 7-9m/s;

• Emergency input port: support queue jumping, error preventing random input;

• Load types: connect to Intelligent Blood Collection workstation, sorting module, bulk input mode and single tube load;

• Fully sealed transmission pipe to avoid sample loss and biohazard contamination;

• Available to connect to: Flexible combination solution; a. All brands TLA or its preprocessing module; b. Separated receiver bin; c. Sorting module.

• Customize the deceleration and speed pressure controlling solution, 0 effect on sample quality;

• Less construction
